Basics of Subnetting

In the world of networking, Subnetting is a vital technique that helps manage networks more efficiently. For beginners, understanding this concept is essential to grasp how networks are structured and operate.

What is Subnetting?

Subnetting is the process of dividing a large network into smaller, more manageable sub-networks (subnets). Each subnet operates independently but remains connected to the larger original network. Subnetting is achieved using a Subnet Mask, which distinguishes the portion of an IP address used for the network and the portion used for devices.

For instance, the IP address 192.168.1.0/24 with a subnet mask of 255.255.255.0 allows 256 IP addresses within one network. By splitting this into subnets, each subnet can have a specific number of IP addresses tailored to the actual usage needs.

Why is Subnetting Important?

1. Efficient resource allocation: Splitting a large network into smaller subnets conserves IP address resources, especially when the number of devices isn’t very large.
2. Improved network performance: Subnetting reduces unnecessary traffic, enhancing data transmission speed.
3. Enhanced security: Subnetting isolates devices and sensitive data, minimizing the risk of unauthorized access.
4. Ease of scalability: When expanding, new subnets can be added without disrupting the existing network structure.

Key Concepts in Subnetting

1. Subnet Mask: A series of numbers that identifies the network and host portions of an IP address. For example:
   • Subnet mask 255.255.255.0 corresponds to /24, supporting 256 IP addresses.
   • Subnet mask 255.255.255.128 corresponds to /25, supporting 128 IP addresses.
2. CIDR (Classless Inter-Domain Routing): A way to represent IP networks without relying on fixed address classes. For example, 192.168.1.0/24 indicates that the first 24 bits are reserved for the network.
3. Subnet ID and Broadcast Address:
   • Subnet ID is the first address in a subnet, identifying the sub-network.
   • Broadcast Address is the last address in a subnet, used to send data to all devices within that subnet.

Example of Subnetting

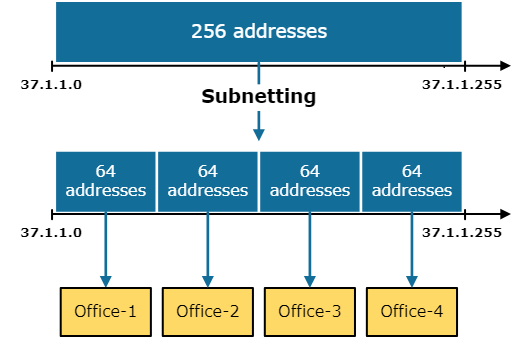

Suppose you have a network 192.168.1.0/24 and want to divide it into four subnets. In this case:

• New Subnet Mask: 255.255.255.192 (equivalent to /26).
• Number of Subnets: 22=42^2 = 422=4.
• Number of IPs per Subnet: 26=642^6 = 6426=64.

The results are:

• Subnet 1: 192.168.1.0 - 192.168.1.63
• Subnet 2: 192.168.1.64 - 192.168.1.127
• Subnet 3: 192.168.1.128 - 192.168.1.191
• Subnet 4: 192.168.1.192 - 192.168.1.255

Subnetting is not an isolated concept it is closely related to other fundamental aspects of computer networking. To gain a better understanding, you can start with What is an IP Address?, where you’ll learn about the critical role of IP addresses in identifying and facilitating communication between devices on a network. Next, exploring What is a Subnet Mask? will help you grasp how networks are divided into smaller subnets and how to accurately calculate IP address ranges. Finally, if you’re curious about the differences between the two major versions of IP addresses, check out IPv4 vs. IPv6: What’s the Difference? to discover why IPv6 was introduced and how it addresses the limitations of IPv4. These topics provide a solid foundation for mastering subnetting and its practical applications.

Subnetting is a powerful tool that optimizes IP address usage, improves performance, and enhances network security. Gaining a basic understanding of subnetting is a crucial foundation for anyone looking to build a career in networking. Keep exploring related topics to deepen your knowledge and apply it effectively!
